    Kapacitet:200.0L

    Grejanje 35°C:

    A+++_D_A+++

    Grejanje 55°C:

    A+++_D_A++

    Split ClimateHub S2 2-zones

    AE200DNXSPGEU

    Dokumentacija

    Izjava o usaglašenosti

    Download

    EHS HydroUnit 00 Highlights 01EHS HydroUnit 00 Highlights 01 Mobile

    Fit in seamlessly in various locations

    Give your home a seamless look. The EHS  ClimateHub and Hydro indoor units have a slim fit design¹ that fit harmoniously with existing home appliances and cabinets, especially as they are a light color. So they can be installed in a variety of spaces and are suitable for multi-unit dwellings or apartments.

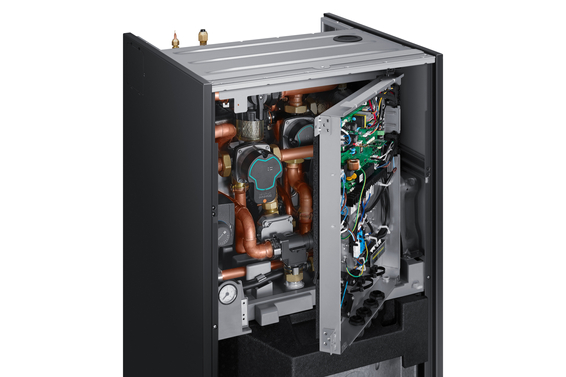

    AE200DNXSPG EU Split IDUAE200DNXSPG EU Split IDU

    Quick & easy installation

    Install the EHS ClimateHub and Hydro Unit system quickly and easily – even in just one day. Magnetic filters, 3-way valves, and an expansion vessel are included. The 2-zone models² can create two zones without the need for additional devices. And you can choose a 2, 4, or 6kW³ capacity for the backup heater.

    EHS HydroUnit 00 Highlights 03EHS HydroUnit 00 Highlights 03 Mobile

    Designed to help reduce energy usage

    Designed to save energy without compromising heating capabilities, the system enhances the ClimateHub's heat transfer area and reduces heat loss⁴. The water heating efficiency has improved from 115% to 148%⁵.

    Connect your home

    AI Home
    Get smart about your heating and home. AI Home⁷ is an intuitive control center with a 7” touch display that supports various languages and has a simple layout and icons. It also lets you monitor your solar PV energy usage⁸. And control other smart appliances⁹ connected to SmartThings.

    Highlights

    Easy to use
    Enjoy easy control and added peace of mind. Edit schedules and automatically adjust the set temperature to suit outside conditions¹⁰.


    New Emergency Mode
    If the heat pump fails or does not function properly, emergency mode is activated automatically.  The auto emergency mode setting provides warm, pleasant temperatures and hot water by switching to an electric heater¹² instead of the heat pump.  The latest model allows you access to emergency mode via the AI Home Automatic Emergency Mode function.

    Effortless support
    The AI Home provides easy access to the system’s user manual. It allows you to download it onto your smartphone device by scanning the QR code shown on the 7" display¹³.

    EHS HydroUnit 00 Overview

    1. Dimensions: ClimateHub Mono = 598(W)x1,850(H)x600(D)mm, Hydro Unit Mono = 530(W)x840(H)x350(D)mm.

    2. Available in both the ClimateHub Mono and Hydro Unit Mono. The 2-Zone model is equipped with a circulation pump, mixing valve and temperature sensor, which are not included in the Standard model.

    3. The 2kW and 4kW capacities are available in a single phase, while the 6kW capacity is available in 3 phases. By adding a 3kW backup heater (MHC-300FP), which supports both single and 3 phases, you can create an electric heater that delivers up to 9kW, to provide reliable heating in extremely cold areas. The MHC-300FP is sold separately.

    4. Based on internal testing comparing the total heat loss: a conventional ClimateHub tank with PU Foam insulation = 92.3W, a new ClimateHub tank with 3 layered insulation = 42.4W.

    5. Based on overall heat transfer rate coefficient: a conventional ClimateHub tank with PU Foam insulation = 92.3W, a new ClimateHub tank with 3 layered insulation = 42.4W. Based on the EU test conditions EN16147, compared to the previous model.

    6. Based on internal testing using a 5kW model (AE050CXYDEK/EU), compared to not using AI Energy mode. Reduces the energy consumption of supplying sanitary hot water by up to 40% and space heating by up to 10%. Results will vary by model. AI Energy mode can be activated via the SmartThings App. A Wi-Fi connection and a Samsung account are required. Its activation status can be monitored in the Zone Overview screen of AI Home.

    7. Wi-Fi connection and Samsung account required.

    8. Required a connection between the EHS and PV system and activated using the PV function in AI Home.

    9. All the appliances must be connected to the SmartThings App via a Wi-Fi connection using the same Samsung account.

    10.  When operating in Auto mode with a Water Law setting.

    11. The function to automatically activate an emergency mode when an error occurs will be available in December 2024. For the models bought before time, this function will be available via a software update.

    12. The function to automatically activate an emergency mode when an error occurs will be available in 2025. For the models bought before time, this function will be available via a software update. Using the electric heater will increase energy consumption.

    13. When the EHS system is connected to the Internet, the manual can be found on the display of the AI Home.

    Specifikacije proizvoda

    • Karakteristike

      Karakteristike

      karakteristike

      • Tip

        Hidro jedinica integrisana u rezervoar Split tipa

      • Režim

        Toplotna pumpa (A2W)

    • Napajanje (unutrašnja jedinica) [Φ, #, V, Hz]

      Napajanje (unutrašnja jedinica) [Φ, #, V, Hz]

      napajanje_unutranja_jedinica___v_hz

      • 3Ф, 380~415V, 50Hz /1Ф,220~240V, 50Hz

    • Ulazna struja

      Ulazna struja

      ulazna_struja

      • Hlađenje (℃)

        3Φ - / 1Φ 1.3 A

      • Maks. hlađenje 1)

        3Φ - / 1Φ 1.3 A

      • Grejanje (℃)

        3Φ - / 1Φ 1.3 A

      • Maks. grejanje 2)

        3Φ 8.7 / 1Φ 18.7 A

    • Energetska efikasnost

      Energetska efikasnost

      energetska_efikasnost

      • EER (hlađenje) [W/W]

        0 W/W

      • COP (grejanje) [W/W]

        N/A

      • Energetski razred (hlađenje) (A+++ - D)

        N/A

      • Energetski razred (grejanje) (A+++ - D)

        N/A

      • Energetski razred grejača prostora (55 °C / 35 °C) (A+++ - D)

        N/A

      • Energetski razred paketa grejača prostora

        N/A

    • Kapacitet

      Kapacitet

      kapacitet

      • Hlađenje [kW]

        N/A

      • Hlađenje [Btu/h]

        N/A

      • Maks. hlađenje [kW]

        N/A

      • Grejanje [kW]

        N/A

      • Grejanje [Btu/h]

        N/A

      • Maks. grejanje [kW]

        N/A

    • Snaga

      Snaga

      snaga

      • MCA

        3Φ 8.7 / 1Φ 18.7 A

      • MFA

        3Φ 10.9 / 1Φ 23.4 A

    • Ulazna snaga

      Ulazna snaga

      ulazna_snaga

      • Hlađenje 1)

        3Φ - / 1Φ 0.3 kW

      • Maks. hlađenje 1)

        3Φ - / 1Φ 0.3 kW

      • Grejanje 2)

        3Φ - / 1Φ 0.3 kW

      • Maks. grejanje 2)

        3Φ 6.0/ 1Φ 4.3 kW

    • Kompresor

      Kompresor

      kompresor

      • Tip

        N/A

      • Izlaz (kW)

        N/A

      • Naziv modela

        N/A

      • Oil

        N/A

      • Ulje (tip)

        N/A

      • Ulje (početno punjenje) [cc]

        N/A

    • Kondenzator

      Kondenzator

      kondenzator

      • Tip

        N/A

      • Veličina cevi (Ø, inč)

        N/A

      • Lost Head (kPa)

        0

      • Brzina protoka vode (LPM)

        N/A

      • Max. Pressure (Mpa)

        0

    • Ventilator

      Ventilator

      ventilator

      • Tip

        N/A

      • Brzina protoka vazduha (velika/srednja/mala) [m3/min]

        N/A

      • Spoljašnji statički pritisak (min./std/maks.) [mmAq]

        N/A

      • Spoljašnji statički pritisak (min./std/maks.) [Pa]

        N/A

    • Cevni priključci

      Cevni priključci

      cevni_prikljuci

      • Instalacije, maks. Visina [m]

        30 m

      • Cev za tečnost (Ø, mm)

        6.35 mm

      • Cev za tečnost (Ø, inč)

        1/4 inch

      • Cev za gas (Ø, mm)

        12.7 mm

      • Cev za gas (Ø, inč)

        1/2 inch

      • Drenažna cev (Ø, mm)

        N/A

      • Ispusna cev za gas (Ø, mm)

        9.52 mm

      • Ispusna cev za gas (Ø, inč)

        3/8

      • Instalacije, maks. Dužina [m]

        50 m

    • Rashladno sredstvo

      Rashladno sredstvo

      rashladno_sredstvo

      • Tip

        N/A

      • Fabričko punjenje (kg)

        0 kg

      • Fabričko punjenje (tCO2e)

        0

      • Način regulacije

        N/A

    • Cevni priključci za rashladno sredstvo (Split)

      Cevni priključci za rashladno sredstvo (Split)

      cevni_prikljuci_za_rashladno_sredstvo_split

      • Tip

        Matica cevne spojnice

      • Cev za tečnost (Ø, mm)

        6.35 mm

      • Cev za gas (Ø, mm)

        12.7 mm

    • Cevni priključci za vodu (Mono)

      Cevni priključci za vodu (Mono)

      cevni_prikljuci_za_vodu_mono

      • Tip

        N/A

      • Cev za tečnost (Ø, mm)

        N/A

      • Cev za gas (Ø, mm)

        N/A

    • Cevni priključci za grejanje prostora

      Cevni priključci za grejanje prostora

      cevni_prikljuci_za_grejanje_prostora

      • Tip

        Ravna cev

      • Cev za tečnost (Ø, mm)

        28 mm

      • Cev za gas (Ø, mm)

        28 mm

    • Cevni priključci za DHW

      Cevni priključci za DHW

      cevni_prikljuci_za_dhw

      • Tip

        Ravna cev

      • Cev za tečnost (Ø, mm)

        22 mm

      • Cev za gas (Ø, mm)

        22 mm

    • Cevni priključci za DHW (sekundarna voda)

      Cevni priključci za DHW (sekundarna voda)

      cevni_prikljuci_za_dhw_sekundarna_voda

      • Tip

        BSPP male

      • Cev za tečnost (Ø, mm)

        1" mm

      • Cev za gas (Ø, mm)

        N/A

    • Grejanje vode

      Grejanje vode

      grejanje_vode

      • Deklarisani profil opterećenja (L/XL)

        L

      • Klasa energetske efikasnosti (A+++ - D)

        A+

    • Rezervoar za toplu vodu

      Rezervoar za toplu vodu

      rezervoar_za_toplu_vodu

      • Nominalna zapremina vode

        200 L

      • Neto zapremina vode

        194 L

      • Materijal

        SUS 316L

      • Maks. Pritisak vode

        10 bar

      • Maks. Temperatura vode

        65 °C

      • Kapacitet imerzionog grejača (dopunski grejač)

        N/A

      • Izolacija

        Inner EPP+VIP+Outer EPS

    • Rezervni grejač

      Rezervni grejač

      rezervni_greja

      • Snaga

        3Ф 6kW kW

      • Termički osigurač

        98 +0 -5 °C

    • Sigurnosni uređaj

      Sigurnosni uređaj

      sigurnosni_ureaj

      • Ventil za smanjenje pritiska

        2.9 bar

      • Senzor protoka

        5~60 LPM

      • Ventil za smanjenje temperature i pritiska (rezervoar)

        10bar, 90℃

      • Termostat (za imerzioni grejač)

        N/A

    • Ekspanziona posuda

      Ekspanziona posuda

      ekspanziona_posuda

      • Unutrašnja zapremina vode

        10 L

      • Radni pritisak

        0.3 Mpa

    • Pumpa za vodu (primarna)

      Pumpa za vodu (primarna)

      pumpa_za_vodu_primarna

      • Tip

        BLDC Inv(PWM)

      • Maks. Statički pritisak

        9 mAq

    • Izmenjivač toplote na strani vode

      Izmenjivač toplote na strani vode

      izmenjiva_toplote_nastrani_vode

      • Tip

        Brazed Plate Exchager

      • Unutrašnja zapremina vode

        1.01(Water Side)0.98(Refrigerant Side) L

    • IP klasa

      IP klasa

      ip_klasa

      • IPX1

    • Zvuk

      Zvuk

      zvuk

      • Zvučni pritisak

        28/32 dBA

      • Nivo zvučnog pritiska (visok/srednji/nizak) [dB(A)]

        N/A

      • Nivo zvučne snage

        42/46 dBA

      • Nivo zvučne snage (hlađenje) [dB(A)]

        N/A

    • Spoljašnje dimenzije (unutrašnja jedinica)

      Spoljašnje dimenzije (unutrašnja jedinica)

      spoljanje_dimenzije_unutranja_jedinica

      • Neto težina (kg)

        145 kg

      • Otpremna težina (kg)

        157.5 kg

      • Neto dimenzije (Š x V x D) (mm)

        598 x 1,850 x 600 mm

      • Transportne dimenzije (Š x V x D) (mm)

        676 x 2,050 x 740 mm

    • Radna temp. Asortiman

      Radna temp. Asortiman

      radna_temp_asortiman

      • Hlađenje (°C)

        5~25 ℃

      • Grejanje (°C)

        15~65 ℃

      • A2W grejanje (°C)

        15~65 °C

      • A2W hlađenje (°C)

        5~25 °C

      • Topla voda za domaćinstvo (°C)

        30~70 °C

      • A2A grejanje (°C)

        N/A

      • A2A hlađenje (°C)

        N/A

    • Temperatura odlazne vode

      Temperatura odlazne vode

      temperatura_odlazne_vode

      • Grejanje (°C)

        15~65 °C

      • Hlađenje (°C)

        5~25 °C

    • Spoljašnje dimenzije (spoljašnja jedinica)

      Spoljašnje dimenzije (spoljašnja jedinica)

      spoljanje_dimenzije_spoljanja_jedinica

      • Neto težina (kg)

        0 kg

      • Otpremna težina (kg)

        0 kg

      • Neto dimenzije (Š x V x D) (mm)

        N/A

      • Transportne dimenzije (Š x V x D) (mm)

        N/A

    • Ploča

      Ploča

      ploa

      • Naziv modela

        N/A

      • Neto težina (kg)

        N/A

      • Otpremna težina (kg)

        N/A

      • Neto dimenzije (Š x V x D) (mm)

        N/A

      • Transportne dimenzije (Š x V x D) (mm)

        N/A

    • Dodatna oprema i pribor

      Dodatna oprema i pribor

      dodatna_oprema_ipribor

      • Drenažna pumpa

        N/A

      • Filter vazduha

        N/A

    • Pametno

      Pametno

      pametno

      • Ugrađen Wi-Fi

        Da

      • Bluetooth

        N/A

      • Podrška za Wi-Fi hardverski ključ (prodaje se zasebno)

        N/A

      • Wi-Fi komplet

        N/A

    • Mogućnost povezivanja aplikacije

      Mogućnost povezivanja aplikacije

      mogunost_povezivanja_aplikacije

      • Podrška za aplikaciju SmartThings

        Da
