Product Specifications
Features
Features
Type

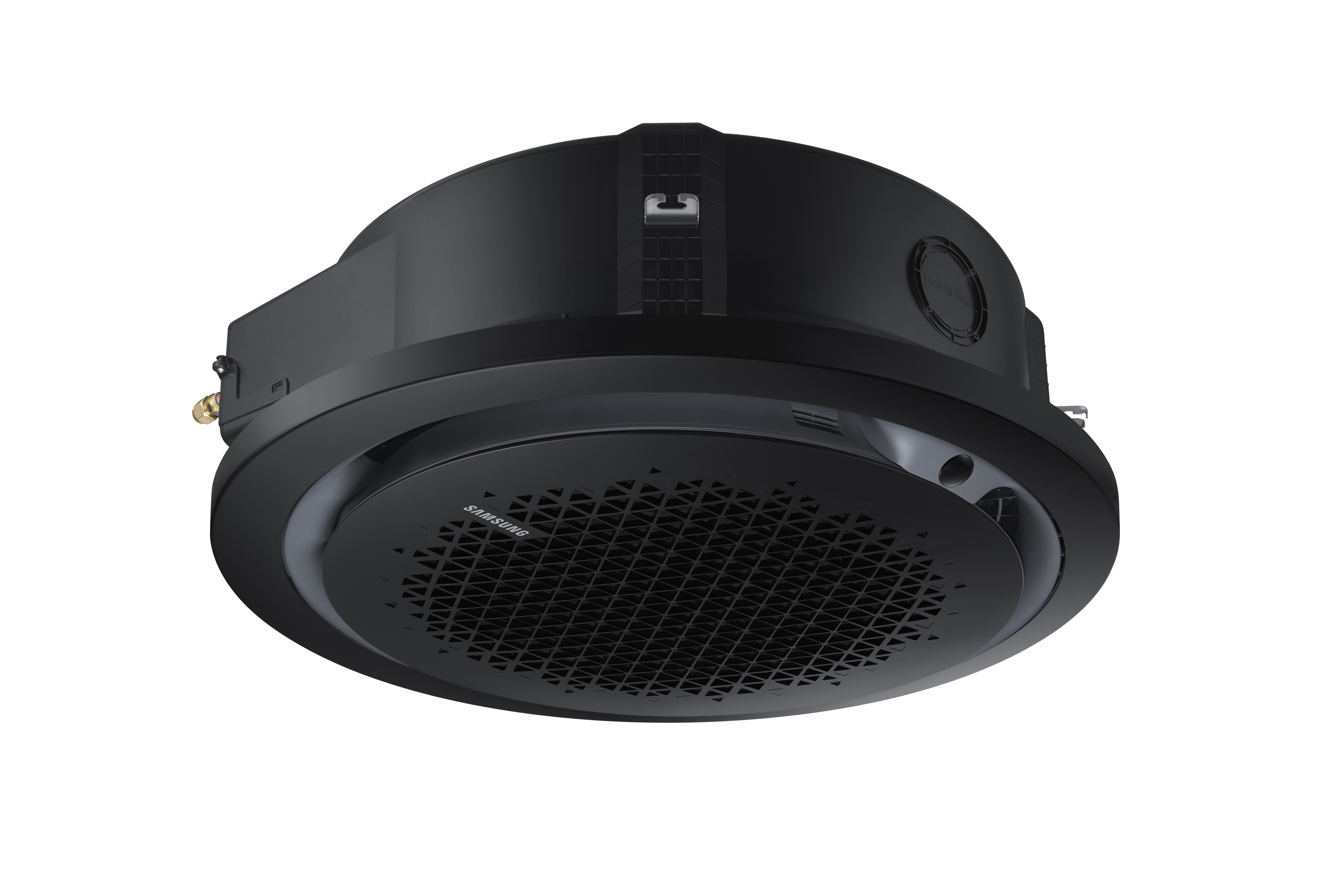

10.0kW-1Φ-360 CST
Model Name
Model Name
Indoor Unit
AC100RN4PKG/EU
Outdoor Unit
AC100RXADKG/EU
System
System
Mode
Heat Pump
Capacity
Capacity
Cooling [kW]
3.00 / 10.00 / 12.00 kW
Heating [kW]
2.20 / 11.20 / 15.50 kW
Power Input
Power Input
Cooling 1)
0.60 / 3.24 / 4.70 kW
Heating 2)
0.46 / 3.20 / 5.40 kW
Current Input
Current Input
Cooling (℃)
3.0 / 14.4 / 20.4 A
Heating (℃)
2.5 / 14.2 / 23.0 A
Power
Power
MCA
25.5 A
MFA
30.0 A
Energy Efficiency
Energy Efficiency
Energy Grade (Cooling)
SEER 6.8 (A++)
Energy Grade (Heating)
SCOP 4.3 (A+)
Piping Connections
Piping Connections
Liquid Pipe (Ø, mm)
9.52 mm
Liquid Pipe (Ø, inch)
3/8"
Gas Pipe (Ø, mm)
15.88 mm
Gas Pipe (Ø, inch)
5/8"
Installation Max. Length [m]
50 m
Installation Max. Height [m]
30 m
Field Wiring
Field Wiring
Transmission Cable
0.75mm2 ↑
Refrigerant
Refrigerant
Type
R32(Contains fluorinated greenhouse gases, GWP=675)
Factory Charging (kg)
2.70 kg
Factory Charging (tCO2e)
1.82 tCO2e
Control Method
EEV
Power Supply (Indoor Unit) [Φ, #, V, Hz]
Power Supply (Indoor Unit) [Φ, #, V, Hz]
1, 2, 220~240, 50
Fan
Fan
Type
Turbo
External Static Pressure (Min / Std / Max) [mmAq]
- mmAq
Air Flow Rate (High / Mid / Low) [m3/min]
31.2/25.5/19.8 CMM
Motor (Output) [W]
97 W
Number of Unit (EA)
1 EA
Drain
Drain
Drain Pipe (Ø,mm)
VP 25 (OD 32 / ID 25) mm
Sound
Sound
Sound Pressure Level (High / Mid / Low) [dB(A)]
44 / 39 / 33 dBA
Sound Power Level (Cooling) [dB(A)]
61 dBA
External Dimension (Indoor Unit)
External Dimension (Indoor Unit)
Net Weight (kg)
23.5 kg
Net Dimensions (WxHxD) (mm)
947 x 365 x 947 mm
Panel
Panel
Model Name
PC4NUDMAN
Net Weight (kg)
3.6 kg
Shipping Weight (kg)
6.3 kg
Net Dimensions (WxHxD) (mm)
1000 x 66 x 1000 mm
Shipping Dimensions (WxHxD) (mm)
1093 x 85 x 1083 mm
Additional Accessories
Additional Accessories
Drain Pump
DC (Include)
Drain Pump Max. Lifting Height/Displacement
750 / 24
Air Filter
-
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
1, 2, 220~240, 50
Fan (Outdoor Unit)
Fan (Outdoor Unit)
Air Flow Rate (Cooling) [m3/min]
72 CMM
Sound (Outdoor Unit)
Sound (Outdoor Unit)
Sound Pressure (Cooling / Heating) [dB(A)]
52 / 54 dBA
Sound Power Level (Cooling) [dB(A)]
69 dBA
External Dimension (Outdoor Unit)
External Dimension (Outdoor Unit)
Net Weight (kg)
75.0 kg
Net Dimensions (WxHxD) (mm)
940 x 998 x 330 mm
Operating Temp. Range
Operating Temp. Range
Cooling (°C)
-15~50 ℃
Heating (°C)
-20~24 ℃
Smart
Smart
WiFi Kit
Yes
App Connectivity
App Connectivity
SmartThings App Support
Yes
Download the product information sheet for more technical data
