Climate comfort for business

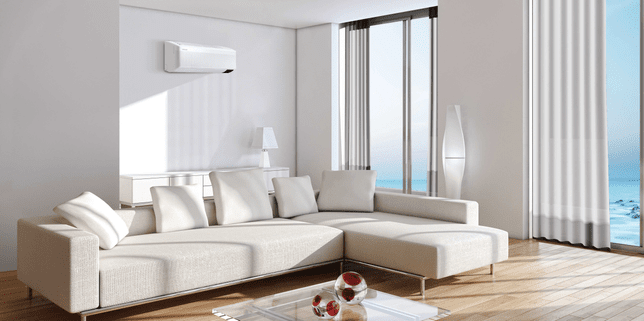

Designed specifically for businesses, a commercial split system cools or heats larger areas that require higher capacities and (multiple) indoor units that function in unison. It offers an ideal solution for small to medium-sized businesses such as restaurants, retail spaces, or offices and enables them to maintain a preferred temperature throughout the day
Features
Remote Control with SmartThings
Control the temperature in any room, anytime and anywhere. Temperatures can be managed remotely using the SmartThings App⁵. With just a simple touch you can turn it on and off, select the cooling mode, schedule its operation and group devices. With the optional Wi-Fi Kit⁶, the different aspects of the system can be controlled via smartphone, with up to 16 connectible indoor units.
SolarCell Remote Controller (Optional)
Samsung introduces the SolarCell Remote controller to its air conditioning line-up as an option. The new SolarCell remote controller focuses on innovative charging, slim design and easy usability features. The SolarCell remote controller does not need batteries; instead a solar panel is integrated on the back of the remote controller that allows charging by exposing it under direct light.
A single, fully charged battery can last up to two years, making it an economical alternative to disposable batteries. In addition, there is also a USB-C port on the bottom of the remote control for fast charging. It has better grip, easier button controls, large OLED display and it is lightweight⁷.
Download the product information sheet for more technical data
Product Specifications
Features
Features
features
Type
3.5kW-1Φ-CRAC
Model Name
Model Name
model_name
Indoor Unit
AC035TNXDKG/EU
Outdoor Unit
AC035RXADKG/EU
System
System
system
Mode
Heat Pump
Capacity
Capacity
capacity
Cooling [kW]
1.0 / 3.5 / 4.5 kW
Heating [kW]
0.8 / 4.0 / 4.8 kW
Power Input
Power Input
power_input
Cooling 1)
0.19 / 1.00 / 1.40 kW
Heating 2)
0.15 / 1.21 / 1.40 kW
Current Input
Current Input
current_input
Cooling (℃)
1.4 / 4.6 / 6.0 A
Heating (℃)
1.2 / 5.6 / 6.2 A
Power
Power
power
MCA
11.2 A
MFA
12.5 A
Energy Efficiency
Energy Efficiency
energy_efficiency
Energy Grade (Cooling) (A+++ - D)
SEER 6.9 (A++)
Energy Grade (Heating) (A+++ - D)
SCOP 4.1 (A+)
Piping Connections
Piping Connections
piping_connections
Liquid Pipe (Ø, mm)
6.35 mm
Liquid Pipe (Ø, inch)
1/4"
Gas Pipe (Ø, mm)
9.52 mm
Gas Pipe (Ø, inch)
3/8"
Installation Max. Length [m]
20 m
Installation Max. Height [m]
15 m
Field Wiring
Field Wiring
field_wiring
Transmission Cable
0.75↑
Refrigerant
Refrigerant
refrigerant
Type
R32(Contains fluorinated greenhouse gases, GWP=675)
Factory Charging (kg)
0.90 kg
Factory Charging (tCO2e)
0.61 tCO2e
Control Method
EEV
Power Supply (Indoor Unit) [Φ, #, V, Hz]
Power Supply (Indoor Unit) [Φ, #, V, Hz]
power_supply_indoor_unit___v_hz
1, 2, 220~240, 50
Fan
Fan
fan
Type
Crossflow Fan
Air Flow Rate (High / Mid / Low) [m3/min]
12.2 / 9.8 / 7.9 CMM
Motor (Output) [W]
27 W
Number of Unit (EA)
1 EA
Drain
Drain
drain
Drain Pipe (Ø,mm)
ID 18mm Hose mm
Sound
Sound
sound
Sound Pressure Level (High / Mid / Low) [dB(A)]
40 / 34 / 28 / 23 dBA
Sound Power Level (Cooling) [dB(A)]
59 dBA
External Dimension (Indoor Unit)
External Dimension (Indoor Unit)
external_dimension_indoor_unit
Net Weight (kg)
9.1 kg
Net Dimensions (WxHxD) (mm)
820 x 299 x 215 mm
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
power_supply_outdoor_unit___v_hz
1, 2, 220~240, 50
Fan (Outdoor Unit)
Fan (Outdoor Unit)
fan_outdoor_unit
Air Flow Rate (Cooling) [m3/min]
30 CMM
Sound (Outdoor Unit)
Sound (Outdoor Unit)
sound_outdoor_unit
Sound Pressure (Cooling / Heating) [dB(A)]
48/48 dBA
Sound Power Level (Cooling) [dB(A)]
61 dBA
External Dimension (Outdoor Unit)
External Dimension (Outdoor Unit)
external_dimension_outdoor_unit
Net Weight (kg)
32.5 kg
Net Dimensions (WxHxD) (mm)
790 x 548 x 285 mm
Operating Temp. Range
Operating Temp. Range
operating_temp_range
Cooling (°C)
-15 ~ 46 ℃
Heating (°C)
-20 ~ 24 ℃
Smart
Smart
smart
WiFi Kit
Yes
App Connectivity
App Connectivity
app_connectivity
SmartThings App Support
Yes
Disclaimers
1. ASHRAE (the American Society of Heating, Refrigerating, and Air- Conditioning Engineers) defines “Still Air” as air currents moving at speeds below 0.15 m/s, with no cold drafts.
2. Tested on the AR12TXCAAWKNEU model in an anechoic environment. WindFree™ mode generates 23 dB(A) of noise, compared to 26 dB(A) produced by the conventional Samsung model. Sound pressure level is a relative value, depending on the distance and acoustic environment. Sound pressure level may differ according to operating conditions.
3. Tested on the AR12TVEAAWKNAP model under specific testing conditions, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode.
4. Tested in an external Korean test lab (FITI). Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use. Certain airborne contaminants referred to are Escherichia coli ATCC 25922, Staphylococcus aureus ATCC 6538.
5. A Wi-Fi connection and Samsung SmartThings application account are required. Wi-Fi Kit to be ordered separately. Requires iOS 10.0 or later & Android 5.0 or later. Additional requirements may be needed to apply SmartThings for medium-sized to large commercial buildings. For details contact a Samsung representative.
6. Wi-fi Kit (MIM-H04EN) required to use smarthings pro for the following product range AC***NAPKG/EU, AM***TNADKH/EU.
7. Compared to the conventional infrared remote controller for example, the AR-EH03.
