Product Specifications
Features
Features
features
Type
360CST-Small
Model Name
Model Name
model_name
Indoor Unit
AG060MN4PKH/EU
Power Supply (Indoor Unit) [Φ, #, V, Hz]
Power Supply (Indoor Unit) [Φ, #, V, Hz]
power_supply_indoor_unit___v_hz
1,220~240,50 or 60
System
System
system
Mode
HEAT PUMP
Capacity
Capacity
capacity
Cooling [kW]
6.0 kW
Heating [kW]
7.3 kW
Power Input
Power Input
power_input
Cooling [kW]
0.058 kW
Heating [kW]
0.058 kW
Current Input
Current Input
current_input
Cooling (℃)
0.50 A
Heating (℃)
0.50 A
Fan
Fan
fan
Type
Turbo Fan
Motor (Output) [W]
65.0 W
Air Flow Rate (High / Mid / Low) [m3/h]
1260/1050/900 ㎥/h

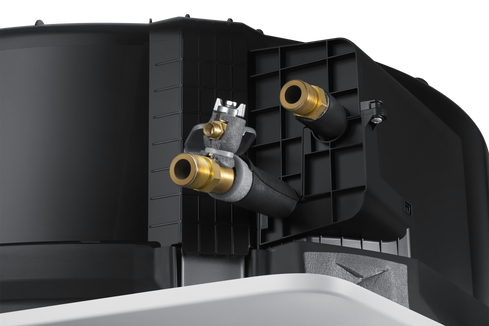

Piping Connections
Piping Connections
piping_connections
Liquid Pipe (Ø, mm)
20A mm
Liquid Pipe (Ø, inch)
PF 3/4
Gas Pipe (Ø, mm)
20A mm
Gas Pipe (Ø, inch)
PF 3/4
Drain Pipe (Ø,mm)
VP25 (OD 32, ID 25) mm
Sound
Sound
sound
Sound Pressure Level (High / Mid / Low) [dB(A)]
40/37/32 dBA
Sound Power Level
57.0 dBA
External Dimension (Indoor Unit)
External Dimension (Indoor Unit)
external_dimension_indoor_unit
Net Weight (kg)
21.0 kg
Net Dimensions (WxHxD) (mm)
947*281*947 mm
Water Side Heat Exchanger
Water Side Heat Exchanger
water_side_heat_exchanger
Water Flow Rate (Cooling / Heating) [m3/h]
1.050/1.266 ㎥/h
Field Wiring
Field Wiring
field_wiring
Power Source Wire
1.5 ~ 2.5
Transmission Cable
0.75 ~ 1.50
