    Capacity:42.0kW

    Heating:

    A+++_D_A+

    HVM R32

    AG042FAVANGEU

    Find an installer

    The HVM R32 with new refrigerant

    The new HVM R32 offers great cooling and heating with a lower GWP compared to the previous refrigerant R410A.  It has a small footprint which makes it easy to transport and install.

    P198 199 TIME4537 1 dr02bw

    Key Features

    Decibel_asset_1x1Decibel_asset_1x1

    Lower GWP

    The HVM R32 has R32 refrigerant. Thanks to this, the system has a lower global warming potential (GWP)¹ of 675 and uses less refrigerant than systems with a traditional refrigerant, like R410A.

    Image 3 1x1 (1)Image 3 1x1 (1)

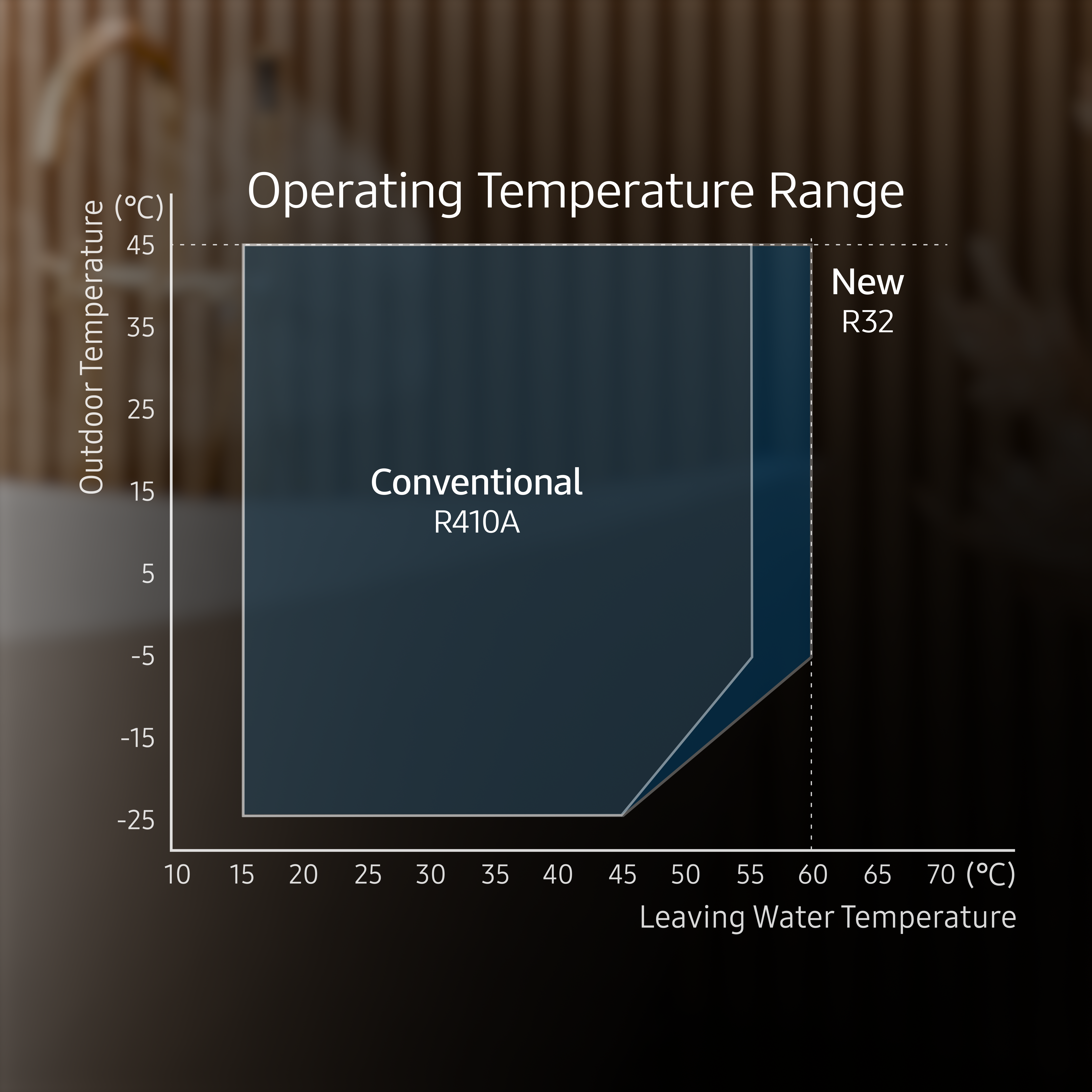

    Great for colder climates

    The system can heat water even at low temperatures, which makes it a great choice for colder climates. The HVM R32 has a leaving water temperature (LWT) of up to 60°C, which is up to 5°C higher than that of systems with a traditional refrigerant like R410A.

    Image 4 1x1Image 4 1x1

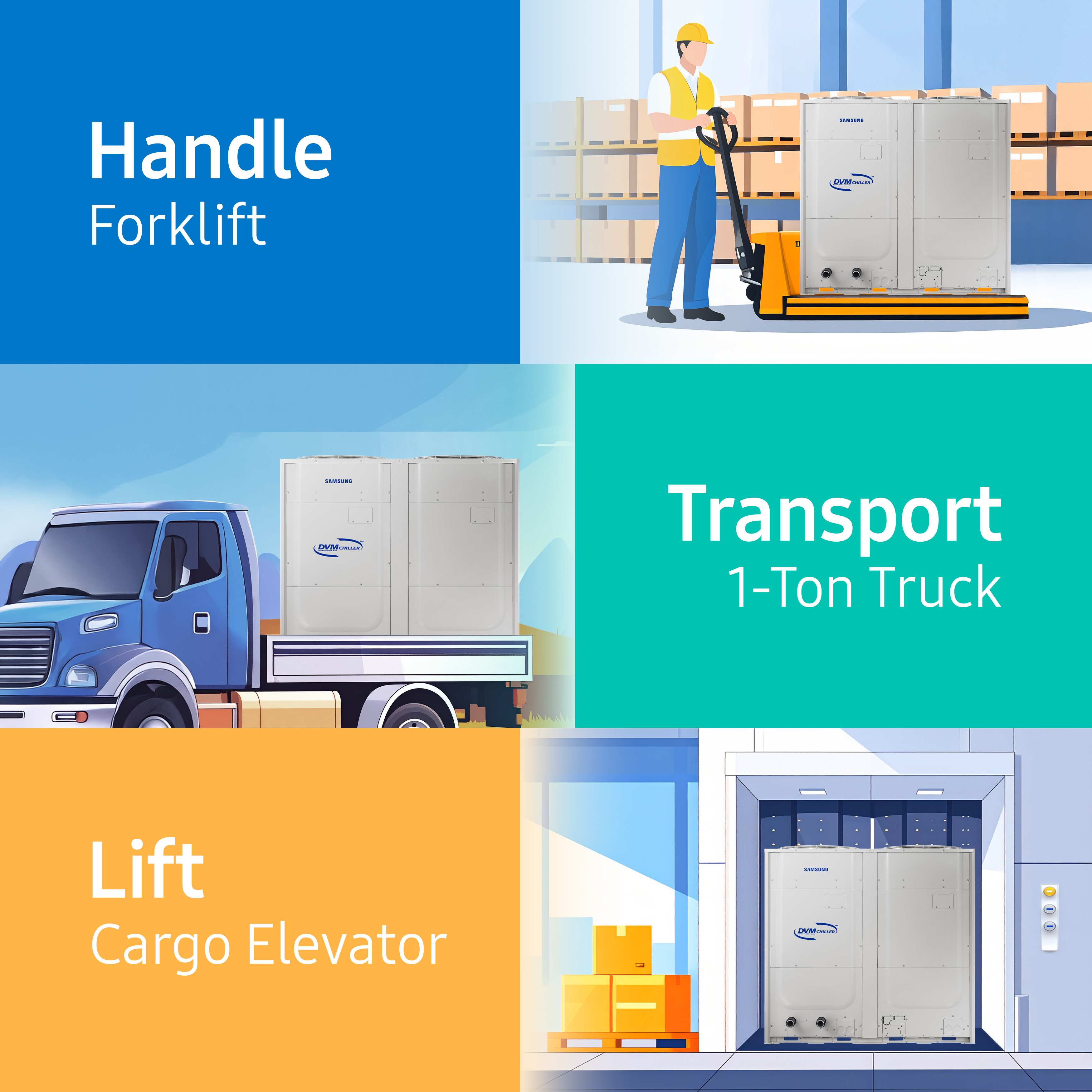

    Easy installation in small spaces

    Thanks to its small footprint of 1.38m² and relatively low weight of 433kg (955lbs), the HVM R32 is easy to transport in a 1 Ton truck, cargo elevator and easy to install in small spaces and on rooftops.

    Disclaimers:

    1. GWP R32: 675; GWP R410A: 2088; R32 refrigerant charge 13.8kg tCO2e=9.32; R410A refrigerant charge 18kg tCO2e=37.58 

    Product Specifications

    • Features

      Features

      features

      • Type

        DVM Chiller

    • Model Name

      Model Name

      model_name

      • Outdoor Unit

        AG042FAVANG/EU

    • Power Supply (Outdoor Unit) [Φ, #, V, Hz]

      Power Supply (Outdoor Unit) [Φ, #, V, Hz]

      power_supply_outdoor_unit___v_hz

      • 3,4,380-415,50/60

    • System

      System

      system

      • Mode

        HEAT PUMP

    • Performance (nominal)

      Performance (nominal)

      performance_nominal

      • 15 HP

    • Capacity

      Capacity

      capacity

      • Cooling [kW]

        42.00 kW

      • Heating [kW]

        42.00 kW

    • Power Input

      Power Input

      power_input

      • Cooling 1)

        12.35 kW

      • Heating 2)

        11.83 kW

    • Current Input

      Current Input

      current_input

      • Cooling (℃)

        20.5 A

      • Heating (℃)

        19.9 A

    • Power

      Power

      power

      • MCA

        32.00 A

      • MFA

        40.00 A

    • Energy Efficiency

      Energy Efficiency

      energy_efficiency

      • EER (Cooling) [W/W]

        3.40 W/W

      • COP (Heating) [W/W]

        3.55 W/W

    • Fan

      Fan

      fan

      • Type

        Propeller

      • Motor (Output) [W]

        630 x 2 W

      • Air Flow Rate (Cooling) [CMM]

        314 CMM

      • External Static Pressure (Min / Std / Max) [mmAq]

        8.0 mmAq

    • Water Side Heat Exchanger

      Water Side Heat Exchanger

      water_side_heat_exchanger

      • Type

        Brazing Plate

      • Quantity

        2 EA

      • Water Flow Rate (Cooling / Heating)

        120 / 120 LPM

      • Pressure Drop (Set, Nominal)

        60 kPa

      • Max. Operating Pressure

        1.0 Mpa

      • Connection Type

        Flange

      • Pipe Connection (Inlet / Outlet)

        40 A

    • Field Wiring

      Field Wiring

      field_wiring

      • Transmission Cable

        0.75 ~ 1.5

    • Refrigerant

      Refrigerant

      refrigerant

      • Type

        R32(Fluorinated greenhouse gas, GWP=675) 9.32tCO2e

      • Factory Charging (kg)

        13.80 kg

    • Sound

      Sound

      sound

      • Sound Pressure

        55.0 dBA

    • External Dimension (Outdoor Unit)

      External Dimension (Outdoor Unit)

      external_dimension_outdoor_unit

      • Net Weight (kg)

        425 kg

      • Net Dimensions (WxHxD) (mm)

        1,795x1695x765 mm

    • Operating Water Temp. Range

      Operating Water Temp. Range

      operating_water_temp_range

      • Cooling (°C)

        5 ~ 25 ℃

      • Cooling (with Brine)

        -10~25 ℃

      • Heating (°C)

        25 ~ 60 ℃

    • Operating Water Flow Range

      Operating Water Flow Range

      operating_water_flow_range

      • Water Flow Rate

        60 ~ 240 LPM

      • Minimum Water Storage in the System

        294 L

    • Operating Temp. Range

      Operating Temp. Range

      operating_temp_range

      • Cooling (°C)

        -15 ~ 48 ℃

      • Heating (°C)

        -25 ~ 43 ℃
