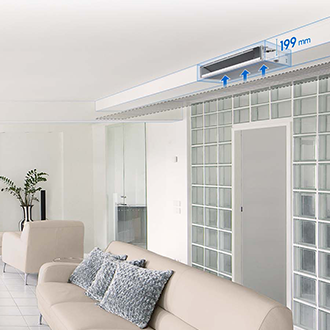

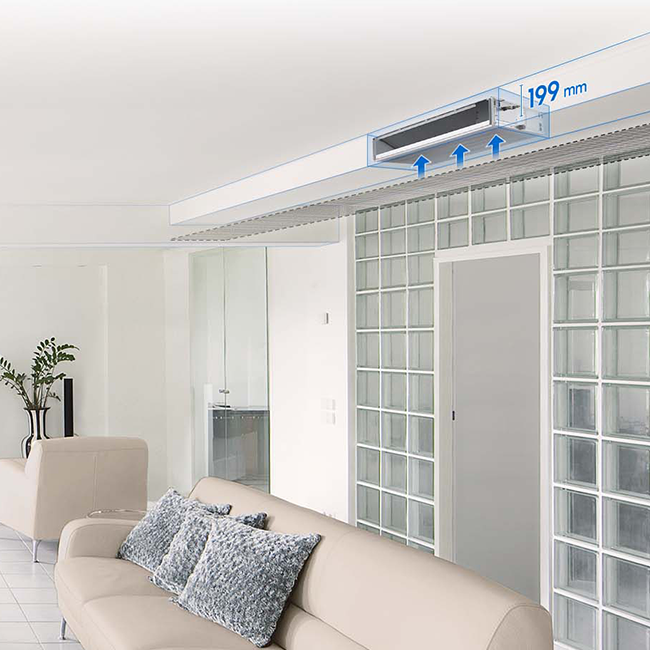

slim mini 3

    Capacity:2.2KW

    TDM Plus LSP Duct

    AE022ANLDEHEU

    Find an installer
    Visual @1x desktop

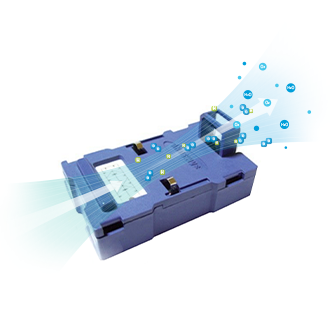

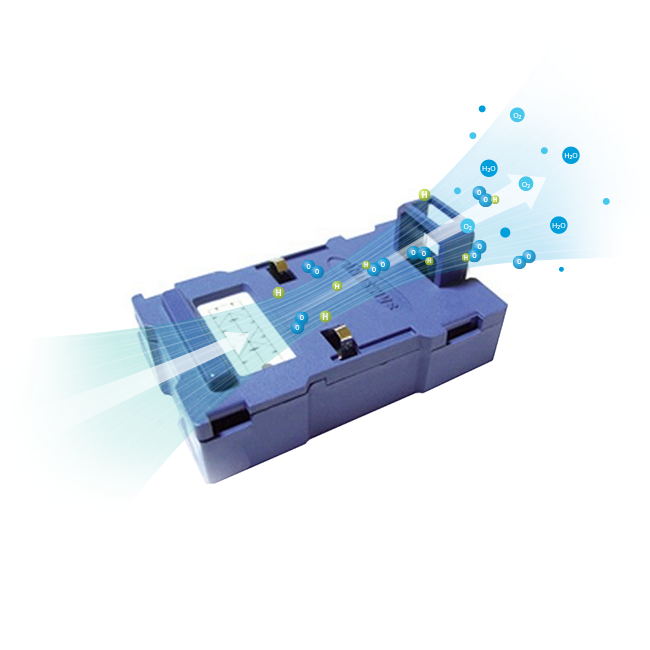

    Purification System

    The TDM Slim duct comes with a built-in purification system that ensures that the air in your premises is clean and hygienic. The purification system traps certain types of dust particles and helps to minimize the spread of dust and certain types of bacteria. It removes up to 99.7 % of certain types of airborne contaminants², as well as allergens³.

    Visual @1x desktop

    2-way Air Inlet

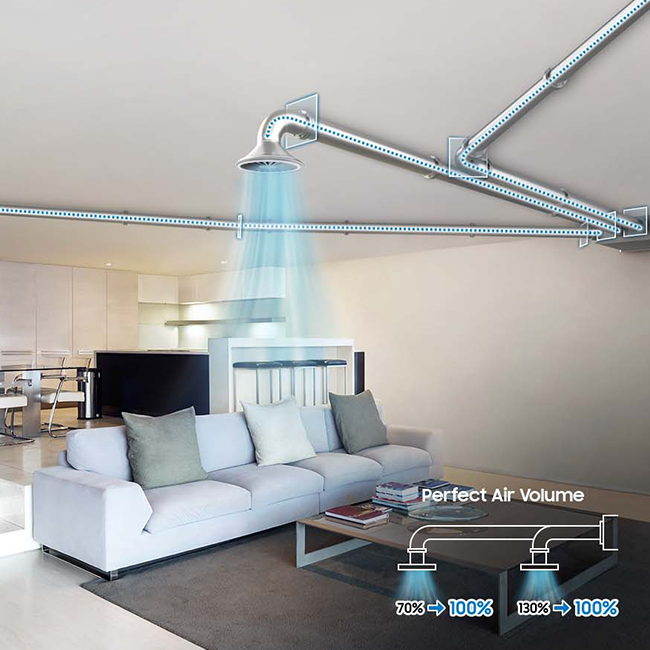

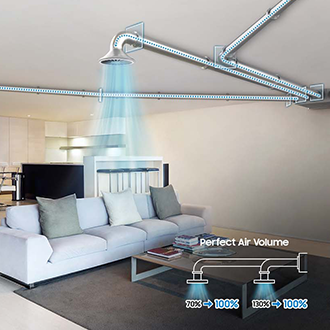

    The TDM Plus Slim Duct has a 2-way air inlet – bottom or rear – that gives much more flexibility in selecting an installation location. It can be configured to provide the optimum airflow to almost any room while being concealed behind ceilings.

    Product Specifications

    • Features

      Features

      • Type

        Home Duct S

      • Mode

        HEAT PUMP

    • Power Supply (Indoor Unit) [Φ, #, V, Hz]

      Power Supply (Indoor Unit) [Φ, #, V, Hz]

      • 1 , 2, 220-240 ,50

    • Current Input

      Current Input

      • Cooling (℃)

        0.25 A

      • Heating (℃)

        0.25 A

    • Capacity

      Capacity

      • Cooling [kW]

        2.20 kW

      • Heating [kW]

        2.50 kW

    • Power Input

      Power Input

      • Cooling 1)

        0.030 kW

      • Heating 2)

        0.030 kW

    • Fan

      Fan

      • Type

        Sirocco Fan

      • Air Flow Rate (High / Mid / Low) [m3/min]

        6.00/4.90/3.80 CMM

      • External Static Pressure (Min / Std / Max) [mmAq]

        0 / 1 / 3 mmAq

      • External Static Pressure (Min / Std / Max) [Pa]

        0 / 9.81 / 29.42 Pa

    • Piping Connections

      Piping Connections

      • Liquid Pipe (Ø, mm)

        6.35 mm

      • Liquid Pipe (Ø, inch)

        1/4

      • Gas Pipe (Ø, mm)

        12.7 mm

      • Gas Pipe (Ø, inch)

        1/2

      • Drain Pipe (Ø,mm)

        VP25 (OD 32,ID 25) mm

    • Refrigerant

      Refrigerant

      • Type

        R410A(Fluorinated greenhouse gas, GWP=2,088)

      • Control Method

        EEV INCLUDED

    • Sound

      Sound

      • Sound Pressure Level (High / Mid / Low) [dB(A)]

        26 / 24 / 21 dBA

      • Sound Power Level

        48 dBA

    • External Dimension (Indoor Unit)

      External Dimension (Indoor Unit)

      • Net Weight (kg)

        15.3 kg

      • Net Dimensions (WxHxD) (mm)

        700 x 199 x 440 mm

    • Additional Accessories

      Additional Accessories

      • Drain Pump

        built-in


    ¹ Based on the AM036KNLDEH/EU model. The width of other models may vary. ² Based on internal testing. Effective on 4 viruses, including Subtype H1N1, and certain bacteria. Data has been measured under specific testing conditions and results may vary depending on environmental factors and individual use. ³ Tested in Kitasato Environmental Science Center (Japan) & Yonsei Univ.(Korea) / Korea test lab (FITI/KEMTI) and Japan test lab(ITEA).
