Connect ClimateFit to Samsung SmartThings¹ for enhanced control and monitoring. Manage heating and Domestic Hot Water settings, review energy usage insights and access AI-powered comfort features through a single connected platform.
Capacity:8.0kW
Big on comfort. Compact by design.
ClimateFit is a compact wall-mounted indoor solution designed for projects where installation flexibility and efficient use of space are key requirements. By integrating key hydraulic components within the unit, ClimateFit provides a practical and space-efficient solution for hydronic heating, cooling and Domestic Hot Water (DHW) applications.
DVM ClimateFit features
Suitable for both new-build and renovation projects, ClimateFit offers consultants, installers and homeowners greater flexibility when creating the right hydronic climate set-up. Additionally, the AI Home features an intuitive interface and clear system information, making daily use effortless for the end-user.
Flexibility that fits your project

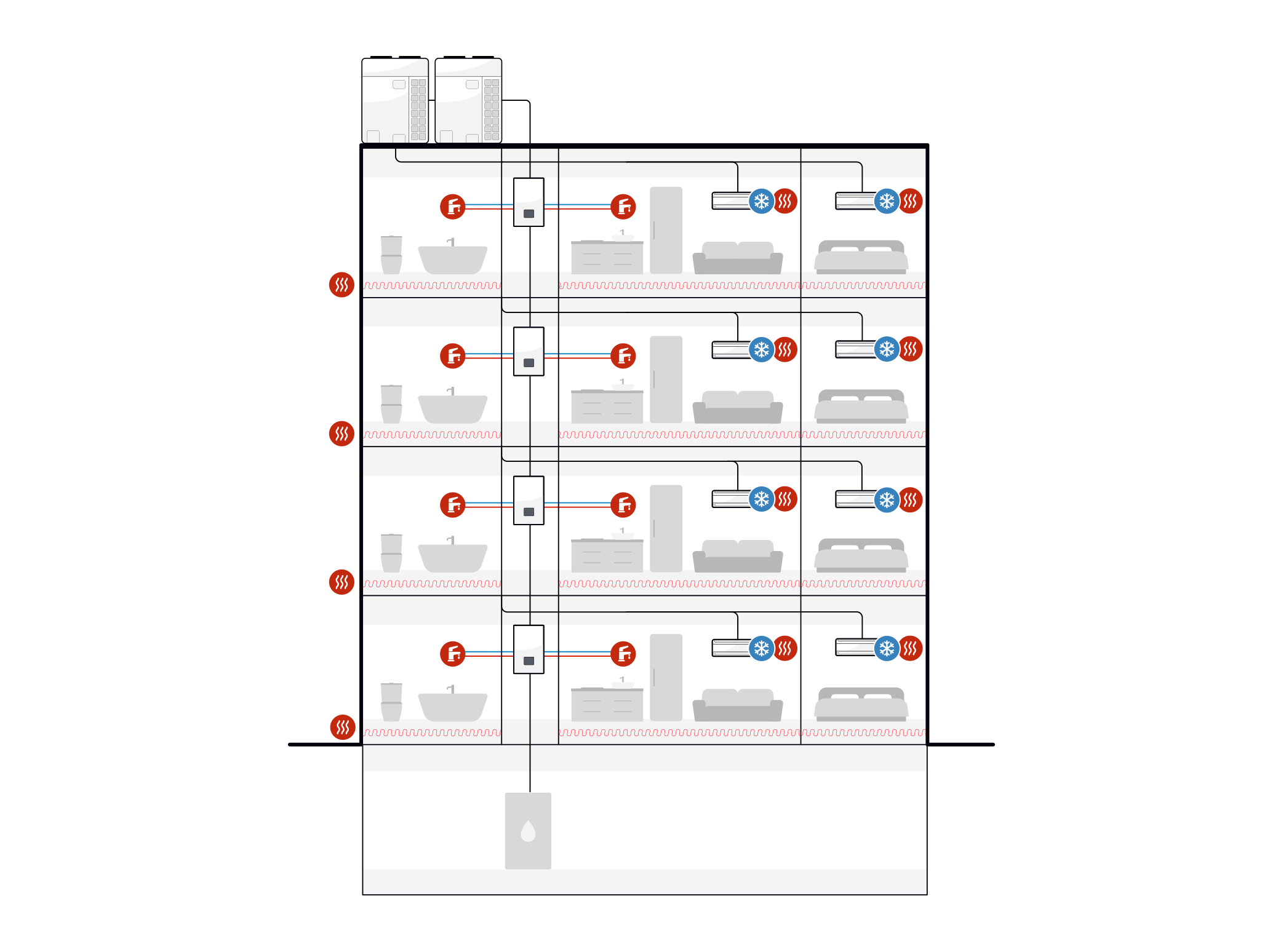

ClimateFit supports a wide range of installation approaches across residential and light commercial applications. Its compact wall-mounted design helps optimise available installation space while integrated hydraulic components simplify system configuration.
Control made simple

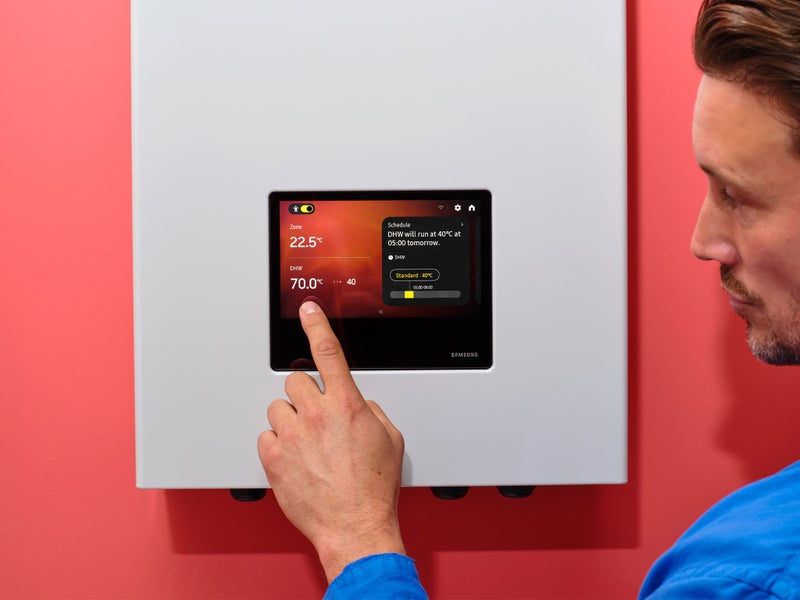

The AI Home display provides a sophisticated smart home control experience through a 7-inch screen. Users can monitor real-time energy usage, adjust schedules and fine-tune temperatures based on outdoor conditions.
The user-friendly interface supports multiple languages and presents information through an intuitive layout, making everyday interaction with the system simple and straightforward.

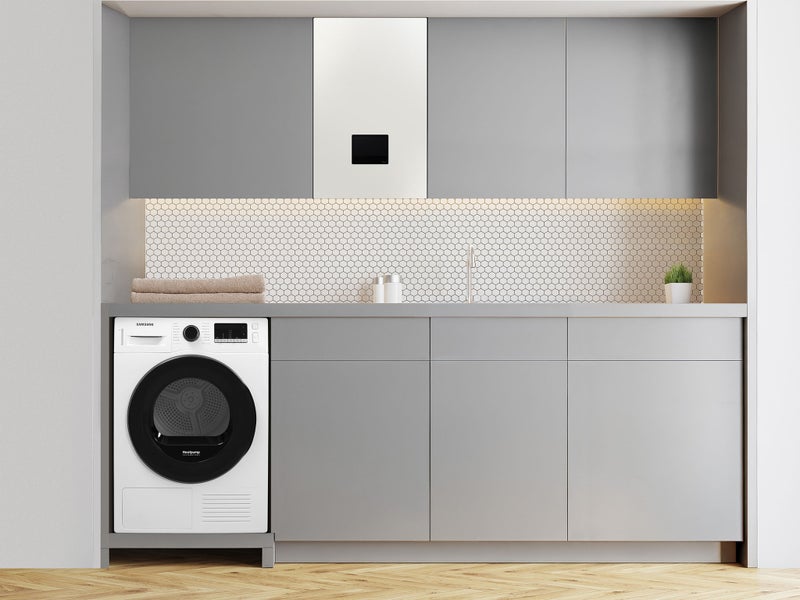

Made to fit your space
Thanks to its compact dimensions, ClimateFit is designed to fit easily into a wide range of spaces. With dimensions comparable to common household appliances, it is particularly suitable for multi-unit homes and apartments, whether in new-build or retrofit projects.
Its greige finish blends seamlessly into both modern and existing interiors, helping it integrate naturally into residential environments.
Product Specifications
Model Name
Model Name
model_name
Indoor Unit
AM080HEYDKG/EU
Power Supply (Indoor Unit) [Φ, #, V, Hz]
Power Supply (Indoor Unit) [Φ, #, V, Hz]
power_supply_indoor_unit___v_hz
1, 2, 220 - 240, 50
System
System
system
Mode
Heat Pump / Heat Recovery
Capacity
Capacity
capacity
Cooling [kW]
7.1 kW
Heating [kW]
8.0 kW
Power Input
Power Input
power_input
Cooling [W]
200 W
Heating [W]
2200 W
Current Input
Current Input
current_input
Cooling (℃)
1.0 A
Heating (℃)
10.1 A
Power
Power
power
MCA
10.1 A
MFA
12.6 A
Energy Efficiency
Energy Efficiency
energy_efficiency
Energy Grade of Space Heater (35 ºC)
A++
Piping Connections
Piping Connections
piping_connections
Liquid Pipe Diameter (mm)
9.52 mm
Liquid Pipe Diameter (inch)
3/8 inch
Gas Pipe Diameter (mm)
15.88 mm
Gas Pipe Diameter (inch)
5/8 inch
Refrigerant
Refrigerant
refrigerant
Type
R32
Control Method
EEV
Sound
Sound
sound
Sound Pressure Level (High / Mid / Low) [dB(A)]
29 dBA
External Dimension (Indoor Unit)
External Dimension (Indoor Unit)
external_dimension_indoor_unit
Net Weight (kg)
51 kg
Shipping Weight (kg)
58 kg
Net Dimensions (WxHxD) (mm)
530 x 840 x 350 mm
Shipping Dimensions (WxHxD) (mm)
602 x 1,032 x 435 mm
Operating Temperature Range
Operating Temperature Range
operating_temperature_range
Cooling (Min) (°C)
5 ℃
Cooling (Max) (°C)
25 ℃
Heating (Min) (°C)
15 ℃
Heating (Max) (°C)
50 ℃
Condenser
Condenser
condenser
Type
Plate Heat Exchanger
Water Flow Rate (LPM)
7-48 LPM
Field Wiring
Field Wiring
field_wiring
Power Source Wire
2.5
Transmission Cable
0.75 ~ 1.5
Smart
Smart
smart
WiFi Embedded
Yes
App Connectivity
App Connectivity
app_connectivity
SmartThings App Support
Yes
Disclaimers
1. Available on Android and iOS devices. A Wi-Fi connection and Samsung account are required.
